XJ550 Workover Rig Parts-3” single standpipe assembly

XJ550 workover rig, with 1350kN/30348 of max static hook load, is mainly used for medium & shallow well workover, oil testing, fishing and pump check operations.

Category: Tag:

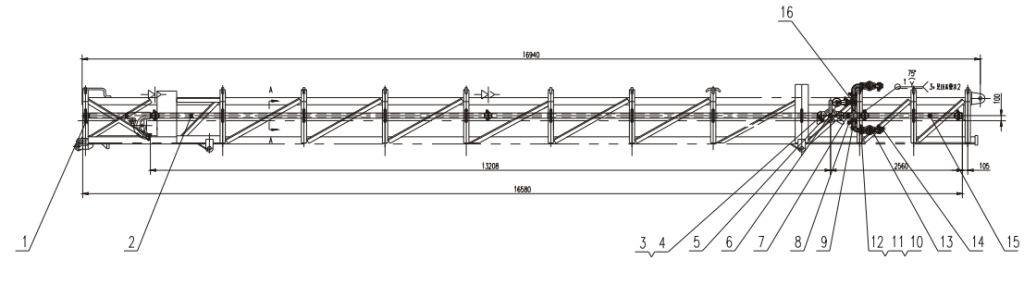

3'' single standpipe assembly(Drawing NO.:Z15010000080AA)
S/N.Drawing No.DescriptionQty
1Z15010200052AAFixed seat10
2Z15010300009AAStandpipe1
3K4131019AAWing nut2
4K4132019AAMgle union2
546001000403”slurry gote valve1
63800200067Pressure gouge(0~60MPa)1
7P4100069AAFour way1
8K4121002AAWing nut4
9P4100079AA2”elbow2
10K5000001AARetainer ring6
11K3114002AASpring circlip6
12K4124001AASealing ring7
13K31201000001AAPlug valve assembly2
14K4123001AA2”thread femal union2
15Z15010400001AALower standpipe1
16P4100593AAT TYPE FITTING1
