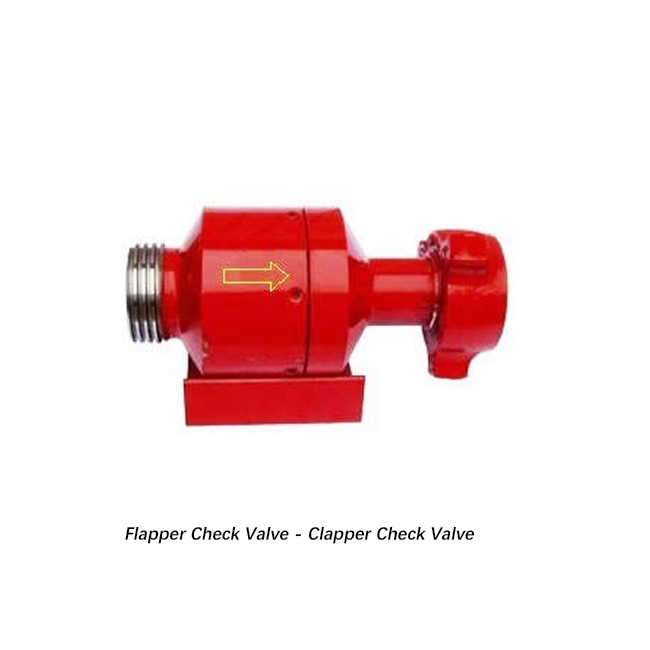

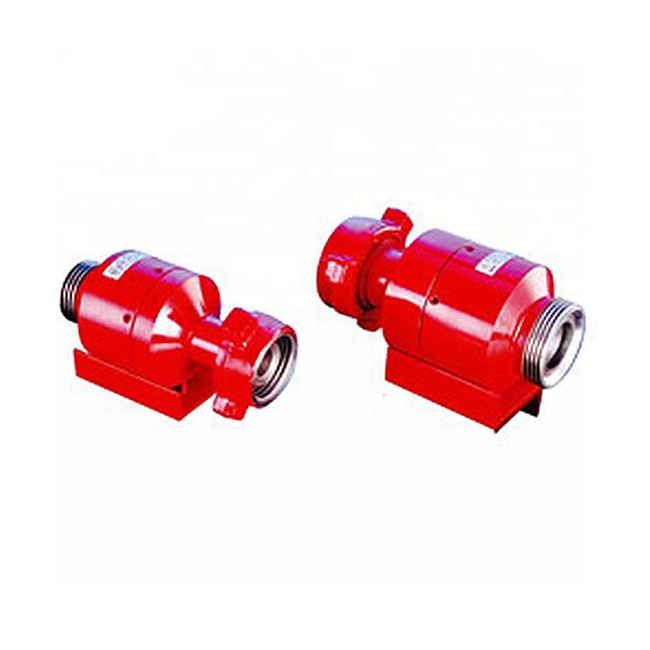

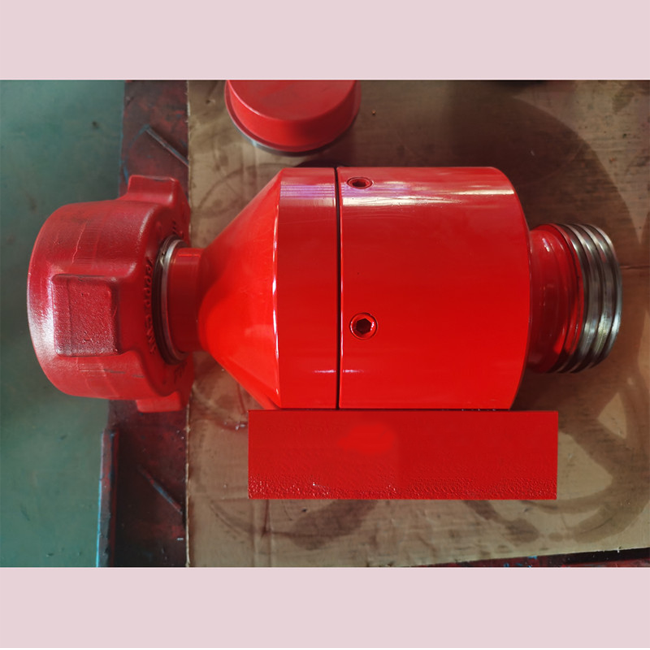

2″ FMC Beeline Baffle Type API Check Valve For Oil Equipment

  • Check valves are suitable for isolating completion fluid, high pressure processing and rig equipment repairing.
  • The surface of valve internal baffle is covered with nitrile-butadiene rubber to extend life.
  • The thread and the joint of ball face adopts America standard.
  • The valve is casted by hard alloy steel and adopts union connection.
Category: Tag:

Features:

  1. API Check valves are mainly used for high-pressure applications and workover equipment.API check valve.
  2. Sizes range from 2″ to 3″. The model of check valve available: D×F70-2″×2″,D×F105-2″×2″,D×F70-3″×3″,D×F105-3″×3″
  3. They are usually installed in high-pressure pipelines for preventing fluid from flowing back. When fluid is pushed back, a retainer plate will automatically close.
  4. Check valves, forged of high-strength alloy steel based on US technologies, are fitted with unions on both ends for easy dismantlement. The retainer plate inside sulfidized with Buna-N has a good sealing effect and a longer service life under high pressure, for conventional or H S environments.
D×F70-2× 2″ 2″dart type check valve 10000psi(70MPa) 2″FIG1002 union
D×F 105-2×2″ 2″dart type check valve 15000psi(105MPa) 2″FIG1502 union
D×F 70-3″×3″ 3″dart type check valve 10000psi(70MPa) 3″FIG1002 union
D×F105-3″×3″ 3″dart type check valve 10000psi(70MPa) 3″FIG1502 union
