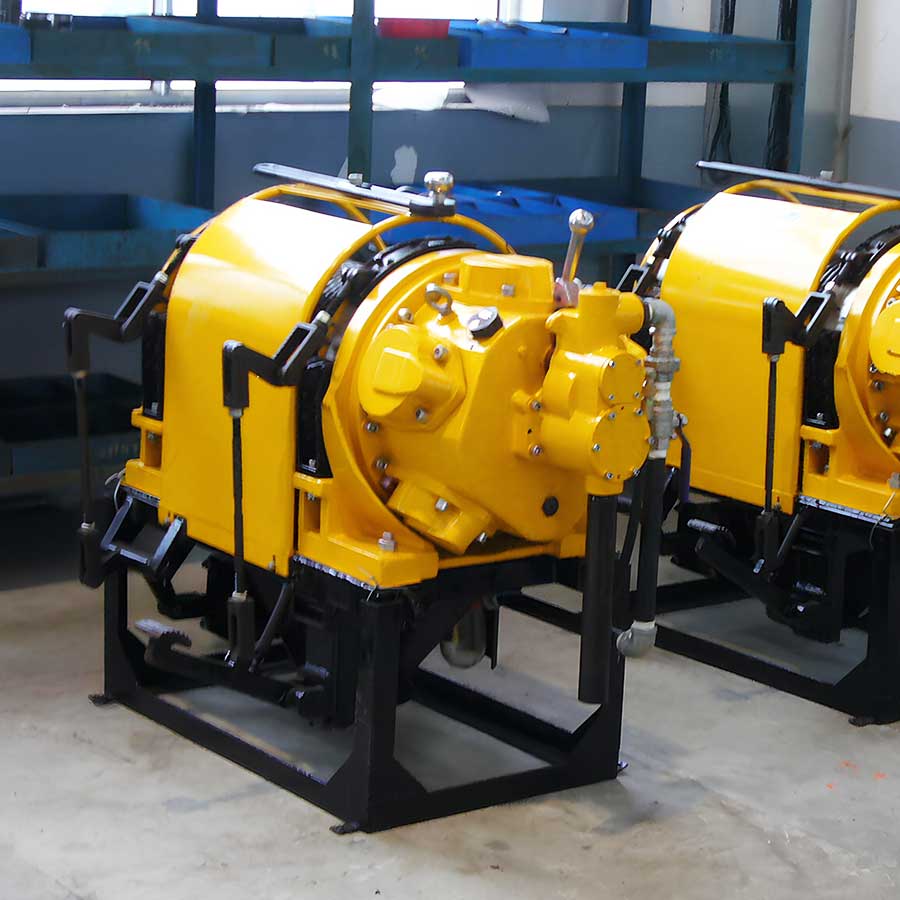

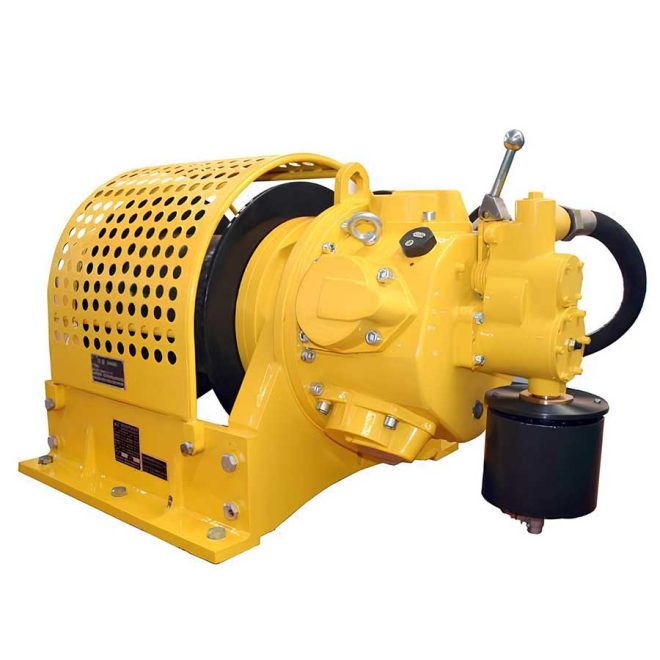

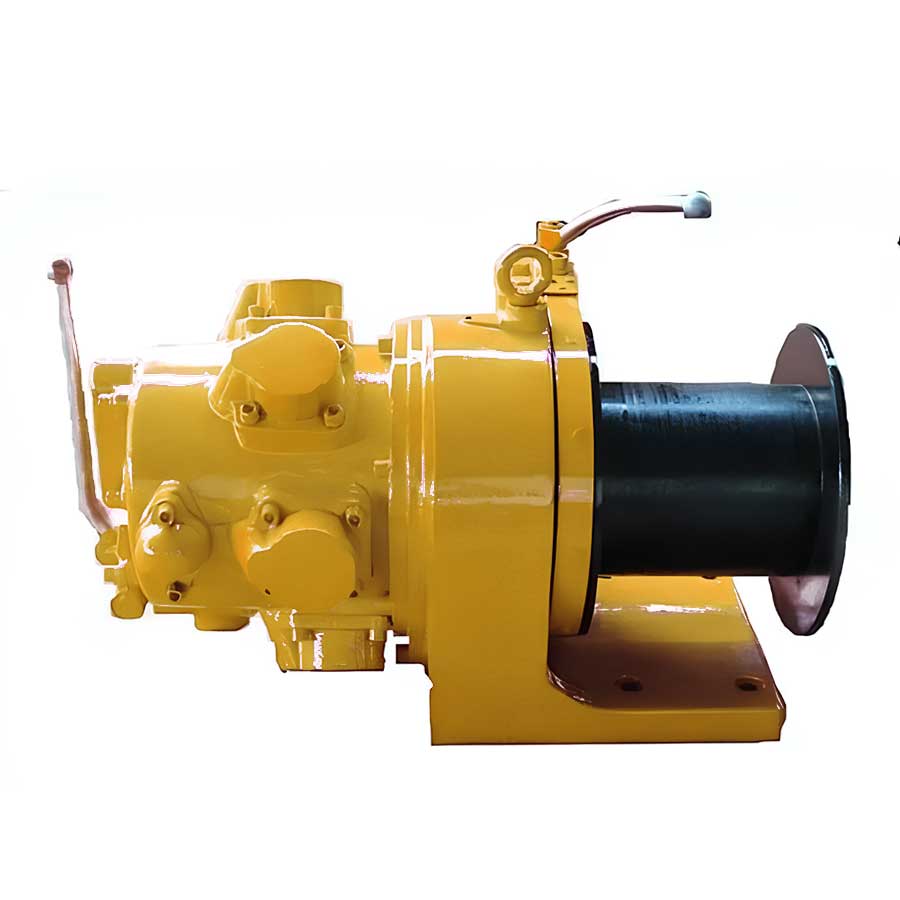

QJ Pneumatic Air Winch
The pneumatic air winch we offer is a versatile tool driven by a piston air motor. It is primarily designed for use in oil, natural gas, and geothermal drilling. Its compact size, lightweight nature, high efficiency, ease of operation, and reliable safety make it indispensable for lifting or hauling heavy objects not only in drilling operations but also in various other applications.
| Model | QJL0.5/40(A) | QJ0.5/120(A) | QJ1/100(A) | QJ3/200(B) | QJ5/120(B)-* | QJ5/220(B) | ||
Air Pressure | MPa | 0.5-0.9 | ||||||
psi | 72-130 | |||||||
Max. Pull | kN | 5 | 5 | 10 | 30 | 50 | 50 | |
US ton | 0.55 | 0.55 | 1.1 | 3.3 | 5.5 | 5.5 | ||
Max. Line Speed | m/min | 12 | 24 | 12 | 35 | 20 | 12 | |
ft/min | 39.3 | 78.6 | 39.3 | 114.8 | 65.6 | 34.3 | ||
Rope Storage | m | 40 | 120 | 100 | 200 | 120 | 220 | |
ft | 131 | 393 | 328 | 656 | 393 | 720 | ||
Wire Rope Diameter | mm | 8 | 8 | 11 | 15.875 | 15.875 | 19 | |
in | 5/16 | 5/16 | 7/16 | 5/8 | 5/8 | 3/4 | ||
Size | mm | 495×365×380 | 675×343×460 | 825×343×450 | 1340×940×985 | 1300×940×985 | 1360×890×750 | |
in | 19.5×14.3×15 | 26.5×13.5×18 | 32.5×13.5×18 | 53×37×39 | 51×37×39 | 53. 5×35×29.5 | ||
Weight | Kg | 45 | 117 | 162 | 600 | 580 | 800 | |
lb | 100 | 258 | 357 | 1320 | 1280 | 1760 | ||
